Rivet
dia.
(mm) |
Hole
Size
(mm) |
Rivet
No. |
Grip range
(mm) |
Rivet length |
Head dia.
(mm) |
Head height
(mm) |
Strength |
Dome h.
(mm) |
CSK h.
(mm) |
Tensile
‚m
(kgf.) |
Shear
‚m
(kgf.) |

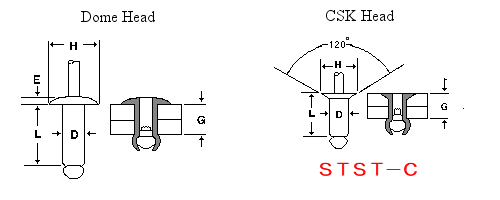

| D |
G |
L |
H |
E |
| 3.2 |
3.3 |
42 |
1.2 - 3.2 |
6.3 |
7.5 |
6.4 |
0.9 |
3040
(310) |
2940
(300) |
| 43 |
3.2 - 4.8 |
7.9 |
9.1 |
| 44 |
4.8 - 6.4 |
9.5 |
10.7 |
| 45 |
6.4 - 8.0 |
11.1 |
12.3 |
| 46 |
8.0 - 9.6 |
12.7 |
13.9 |
| 4.0 |
4.1 |
52 |
1.2 - 3.2 |
6.8 |
8.1 |
8.0 |
1.1 |
4410
(450) |
3920
(400) |
| 54 |
3.2 - 6.4 |
10.0 |
11.3 |
| 56 |
6.4 - 9.6 |
13.2 |
14.5 |
| 4.8 |
4.9 |
62 |
1.6 - 3.2 |
7.7 |
9.2 |
9.6 |
1.3 |
6660
(680) |
5780
(590) |
| 64 |
3.2 - 6.4 |
10.9 |
12.4 |
| 66 |
6.4 - 9.6 |
14.1 |
15.6 |
| 68 |
9.6 -12.8 |
17.3 |
18.8 |
* Colored rivets are also available.
|
