Tomobuchi Iron Works, Ltd. Open type rivets -CS-

.AS
.SB
.CS
.STS
.STST
.AA

.ASSE

.BAPI
.SSPI

.HR-002
.No.999
.No.8000/N
.HR-011
.HR-022/N
.FH-44

.TAR-50
.TAR-65
.MS20
.MS40
.MS60

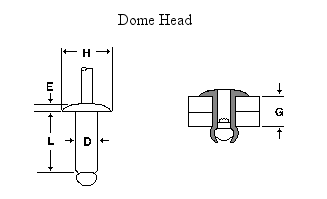

Rivet
dia.
(mm) Hole
Size
(mm) Rivet
No. Grip range
(mm) Rivet length
(mm) Head dia.
(mm) Head height
(mm) Strength

D G L H E Tensile
N
(kgf.) Shear
N
(kgf.)

3.2 3.3 41 1.0 - 1.6 5.0 6.4 1.0 1370
(140) 980
(100)

42 1.6 - 3.2 6.0

43 3.2 - 4.8 8.0

44 4.8 - 6.4 10.0

4.0 4.1 52 1.2 - 3.2 6.0 8.0 1.3 2250
(230) 1470
(150)

54 3.2 - 6.4 10.0

56 6.4 - 9.6 15.0
