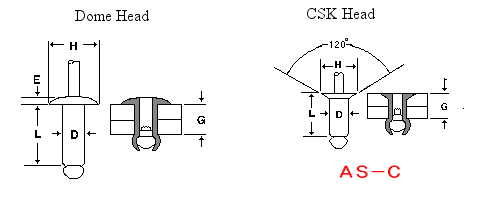

AS
figure



Rivet
dia.
(mm)		 Hole
Size
(mm)		 Rivet
No.		 Grip range
(mm)		 Rivet length Head dia. Head
Height
(mm)		 Strength
Dome h.
(mm)		 CSK h.
(mm)		 Dome h.
(mm)		 CSK h.
(mm)		 Tensile
N
(kgf.)		 Shear
N
(kgf.)
D G L H E
2.4 2.5 32 1.0 - 3.2 6.0 6.0 4.8 4.3 0.8 690
(70)		 490
(50)
34 3.2 - 6.4 9.2 9.2
3.2 3.3 41 1.0 - 1.6 5.0 . 6.4 5.6
(6.4)		 1.0 1370
(140)		 880
(90)
42 1.6 - 3.2 6.6 6.6
43 3.2 - 4.8 8.2 8.2
44 4.8 - 6.4 9.8 9.8
45 6.4 - 8.0 11.4 .
46 8.0 - 9.6 13.3 .
48 9.6 -12.8 16.7 .
410 12.8-16.0 21.0 .
412 16.0-19.2 24.0 .
414 19.2-22.7 27.0 .
4.0 4.1 52 1.2 - 3.2 7.3 . 8.0 7.2
(8.0)		 1.3 2250
(230)		 1470
(150)
53 3.2 - 4.8 8.9 .
54 4.8 - 6.4 10.5 10.5
55 6.4 - 8.0 11.9 .
56 8.0 - 9.6 13.6 13.3
58 9.6 -12.8 17.3 .
510 12.8-16.0 20.5 .
512 16.0-19.2 24.0 .
514 19.2-22.7 27.0 .
4.8 4.9 62 1.6 - 3.2 7.9 . 9.6 8.9
(9.6)		 1.6 2940
(300)		 1960
(200)
63 3.2 - 4.8 9.5 .
64 4.8 - 6.4 11.1 11.1
65 6.4 - 8.0 12.7 .
66 8.0 - 9.6 14.3 14.3
68 9.6 -12.8 17.5 .
610 12.8-16.0 21.3 .
612 16.0-19.2 24.6 .
614 19.2-22.7 27.0 .
616 22.7-25.9 30.0 .
618 25.9-29.1 33.0 .
620 29.1-32.3 35.0 .
622 32.3-35.5 40.0 .
6.4 6.5 84 3.2 - 6.4 12.0 . 12.8 . 2.0 4900
(500)		 3230
(370)
86 6.4 - 9.6 15.0
88 9.6 -12.8 18.0
810 12.8-16.0 21.0
812 16.0-19.2 24.0
814 19.2-22.7 27.0
816 22.7-25.9 30.0


* Colored rivets are also available.
* Ohter size of CSK head rivets can also be provided upon request.

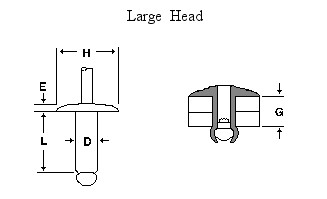

ASL
figure



Rivet
dia.
(mm)		 Hole
Size
(mm)		 Rivet
No.		 Grip range
(mm)		 Rivet length
(mm)		 Head dia.
(mm)		 Head height
(mm)		 Strength
D G L H E Tensile
N
(kgf.)		 Shear
N
(kgf.)
3.2 3.3 44 1.6 - 6.4 10.0 9.5 1.4 1370
(140)		 880
(90)
4.0 4.1 54 1.6 - 6.4 10.0 12.0 1.8 2250
(230)		 1470
(150)
56 6.4 - 9.5 15.0
4.8 4.9 64 1.6 - 6.4 12.0 15.9 2.0 2940
(300)		 1960
(200)
66 6.4 - 9.5 15.0
68 9.5 -12.7 18.0
610 12.7-16.0 21.0
612 16.0-19.2 24.0
614 19.2-22.7 27.0
616 22.7-25.9 30.0
6.4 6.5 84 1.6 - 6.4 12.0 19.0 2.8 4900
(500)		 3230
(370)
86 6.4 - 9.5 16.0
88 9.5 -12.7 19.0
810 12.7-16.0 23.0
812 16.0-19.2 26.0
814 19.2-22.7 30.0
816 22.7-25.9 33.0


* Colored rivets are also available.
