Rivet dia. (mm)	Hole Size (mm)	Rivet No.	Grip range (mm)	Rivet length		Head dia.		Head height (mm)	Strength
				Dome h. (mm)	CSK h. (mm)	Dome h. (mm)	CSK h. (mm)		Tensile N (kgf.)	Shear N (kgf.)

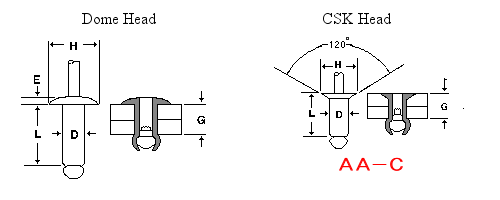

D			G	L		H		E
2.4	2.5	32	1.0 - 3.2	5.5	.	4.8	.	0.8	539 (55)	343 (35)
		34	3.2 - 6.4	8.7	.
3.2	3.3	41	1.0 - 1.6	4.7	.	6.4	5.6 (6.4)	1.0	980 (100)	618 (65)
		42	1.6 - 3.2	6.3	6.7
		43	3.2 - 4.8	7.9	8.3
		44	4.8 - 6.4	9.5	9.9
		45	6.4 - 8.0	11.1	.
		46	8.0 - 9.6	12.7	.
		48	9.6 -12.8	15.9	.
4.0	4.1	52	1.2 - 3.2	6.8	.	8.0	7.2 (8.0)	1.1	1470 (150)	980 (100)
		53	3.2 - 4.8	8.4	.
		54	4.8 - 6.4	10.0	10.2
		56	6.4 - 9.6	13.2	13.5
		58	9.6 -12.8	16.4	.
4.8	4.9	62	1.6 - 3.2	7.7	.	9.6	8.9 (9.6)	1.5	2160 (220)	1470 (150)
		64	3.2 - 6.4	10.9	11.2
		66	6.4 - 9.6	14.1	14.5
		68	9.6 -12.8	17.3	.
		610	12.8-16.0	20.5	.
		612	16.0-19.2	25.0	.

* Colored rivets are also available.
