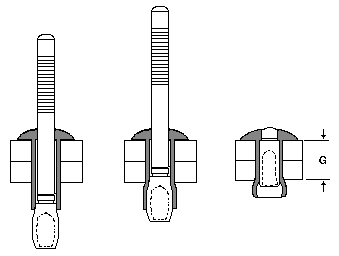

Benefits
- Extra high shear and tensile strength.
- Hole filling and sealing capability.
- High clamp up.
- No sprecial nosepiece required.
 |
 |
Rivet
dia.
(mm) |
Hole
Size
(mm) |
Rivet
No. |
Grip range
(mm) |
Rivet length
(mm) |
Head dia.
(mm) |
Head height
(mm) |
Blind side
protrusion
(mm) |
Stemp
dia.
(mm) |
Shear
strength
N
(kgf.) |
Tensile
strength
N
(kgf.) |
Stem
retention load
N
(kgf.) |

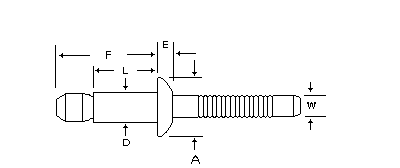

| D |
G |
L |
A |
E |
F |
W |
| 4.8 |
4.9
`
5.1 |
BAPI 6-4 |
1.6 - 6.9 |
10.6 |
9.8 |
2.3 |
18.2 |
3.0 |
3332
(340) |
2675
(273) |
225
(23) |
| BAPI 6-7 |
5.4 -10.7 |
13.7 |
21.4 |
| 6.4 |
6.6
`
7.0 |
BAPI 8-6 |
2.0 - 9.5 |
14.1 |
13.1 |
2.9 |
22.5 |
4.1 |
6017
(614) |
4459
(455) |
441
(45) |
| BAPI 8-10 |
8.9 -15.9 |
20.5 |
31.6 |
Rivet
dia.
(mm) |
Hole
Size
(mm) |
Rivet
No. |
Grip range
(mm) |
Rivet length
(mm) |
Head dia.
(mm) |
Head height
(mm) |
Blind side
protrusion
(mm) |
Stem
dia.
(mm) |
Shear
Strength
N
(kgf.) |
Tensile
Strength
N
(kgf.) |
Stem
retention load
N
(kgf.) |
| D |
G |
L |
A |
E |
F |
W |
| 4.8 |
4.9
`
5.1 |
SSPI 6-4 |
1.6 - 6.9 |
10.6 |
9.8 |
2.3 |
18.2 |
3.0 |
6458
(659) |
4459
(455) |
666
(68) |
| SSPI 6-7 |
5.4 -10.7 |
13.7 |
21.4 |
| 6.4 |
6.6
`
7.0 |
SSPI 8-6 |
2.0 - 9.5 |
14.1 |
13.1 |
2.9 |
22.5 |
4.1 |
14259
(1455) |
11133
(1136) |
1333
(136) |
| SSPI 8-10 |
8.9 -15.9 |
20.5 |
31.6 |
|
