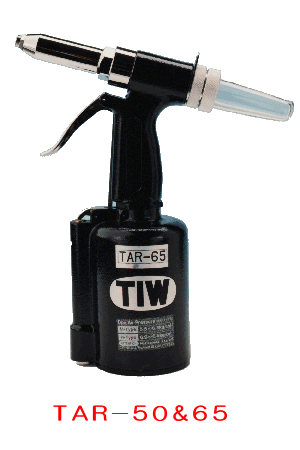

TAR-50 |
TAR-65 |
| Rivet setting capacity (mm) |
2.4 , 3.2 , 4.0 & 4.8 |
3.2 , 4.0 , 4.8 & 6.4 |
| Operational air pressure ( kg/cm2 ) |
5.0 - 6.0 |
| Air consumption ( l/rivet ) |
1.45 |
3.0 |
| Net weight (kg) |
1.45 |
2.1 |
|
 |
| . |

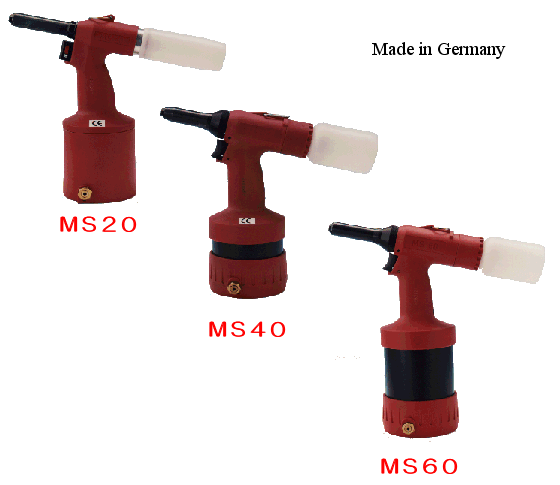

MS20 |
MS40 |
MS60 |
| Rivet setting capacity |
| 2.4mm |
O |
- |
- |
| 3.2mm |
O |
- |
- |
| 4.0mm |
O |
O |
O |
| 4.8mm |
O |
O |
O |
| 6.4mm |
- |
O
(except St.Steel rivets) |
O |
| Interlock rivet |
- |
- |
O |
| Operational air pressure ( kg/cm2 ) |
5.0 - 6.0 |
| Air consumption ( l/rivet ) |
2.0 |
3.5 |
4.8 |
| Net weight (kg) |
1.6 |
1.7 |
2.6 |
| Height X Width (mm) |
265 X 285 |
275 X 300 |
340 X 320 |
| Mandrel shooter |
O |
O |
O |
|
The MS riveter has been approved by the TUV Rheinland and GS-labeled for safe and efficient operation and is CE marked.
|
