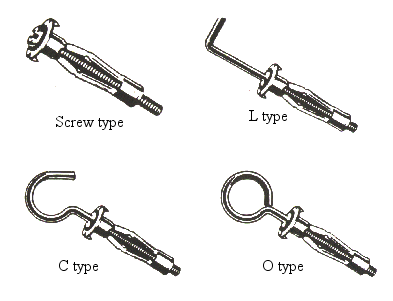

figure
figure



Part No. Length
(mm)
Dia.
(mm)
Neck length
(mm)
Screw dia.
(mm)
Hole size
ƒ³(mm)
Grip range
(mm)
A B C
A-405 20 6.8 3.0 Pan head 4 9.0 1 - 5
A-409 32 6.8 7.0 Pan head 4 9.0 3 - 9
A-416 38 6.8 13.0 Pan head 4 9.0 9 -16
A-423 46 6.8 20.0 Pan head 4 9.0 16-23
A-438 58 6.8 35.0 Pan head 4 9.0 31-38
A-514 51 9.5 13.0 Pan head 5 13.0 7 -14
A-409-C.L.O 32 6.8 7.0 C.L.O 4 9.0 3 - 9
A-409S 32 6.8 7.0 CSK head 4 9.0 3 - 9

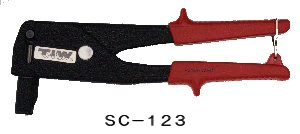

SC-123

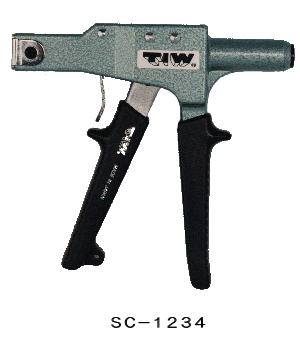

SC-1234
