Tomobuchi Iron Works, Ltd. Sealed type rivets -ASSE-

.AS
.SB
.CS
.STS
.STST
.AA

.ASSE

.BAPI
.SSPI

.HR-002
.No.999
.No.8000/N
.HR-011
.HR-022/N
.FH-44

.TAR-50
.TAR-65
.MS20
.MS40
.MS60

Rivet
dia.
(mm) Hole
Size
(mm) Rivet
No. Grip range
(mm) Rivet length Head dia.
(mm) Head height
(mm) Strength

Dome h.
(mm) CSK h.
(mm) Tensile
N
(kgf.) Shear
N
(kgf.)

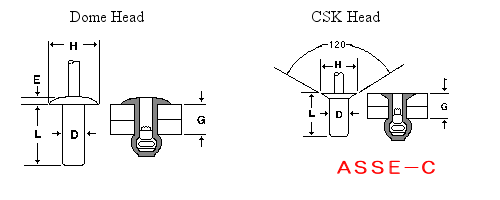

D G L H E

3.2 3.3 41 1.0 - 1.6 6.5 . 6.0 1.2 1570
(160) 1180
(120)

42 1.6 - 3.2 8.0 8.0

43 3.2 - 4.8 9.5 9.5

44 4.8 - 6.4 11.0 11.0

45 6.4 - 8.0 12.5 .

46 8.0 - 9.6 . 14.0

4.0 4.1 52 1.2 - 3.2 8.0 . 8.0 1.5 2160
(220) 1760
(180)

53 3.2 - 4.8 9.5 9.5

54 4.8 - 6.4 11.0 11.0

55 6.4 - 8.0 13.0 .

56 8.0 - 9.6 . 14.0

4.8 4.9 62 1.6 - 3.2 8.0 . 9.5 1.8 3630
(370) 2550
(260)

63 3.2 - 4.8 9.5 .

64 4.8 - 6.4 11.0 .

65 6.4 - 8.0 12.5 .

66 8.0 - 9.6 14.0 .

68 9.6 -12.8 18.0 .

610 12.8-16.0 21.0 .

6.4 6.5 84 3.2 - 6.4 13.0 . 13.0 2.2 6470
(660) 4510
(460)

86 6.4 - 9.6 15.9 .

88 9.6 -12.8 20.0 .

810 12.8-16.0 23.0 .

812 16.0-19.2 25.0 .

* AASE (Al./Al.)
* ASTSE (Al./St.Steel)
* CSSE (Copper/Steel)
* STSE (St.Steel/St.Steel).rivets are also available.
